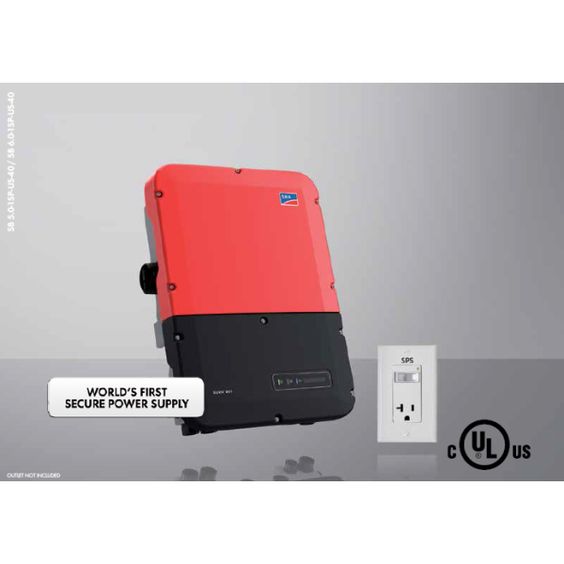

SMA SB 5.0-US Sunny Boy 5000W Grid Tie Inverter
Untitled Document
The all new Sunny Boy Residential String Inverter - Three MPPT Circuits, allowing one string to each, flexible string sizing. Secure power supply 2000W. Integrated DC Disconnect Integrated WiFi or Wired datalogger and output to Sunny Portal.
| Brand |
SMA |
| Manufacturer Part Number |
SB5.0-1SP-US-40 |
| Warranty |
10-years |
| Maximum Input String Voltage |
600.0 |
| MPPT Range |
100 to 550 |
| Minimum Input String Voltage |
125.0 |
| Number of String Inputs |
3 |
| MPPT Circuits |
3 |
| Nominal AC Power |
5000.0 |
| CEC Efficiency |
97.0 % |
| Length |
31.5 |
| Width |
23.6 |
| Height |
11.8 |
| Weight |
66.0 |
| Volume |
8773.0 |
|
|
