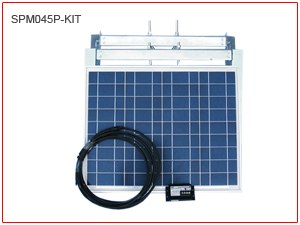

Solartech 45 Watt 12 Volt Solar Power Kit SPM045P-KIT

ONLY: $318.85
Item Number: SPM045P-KIT

| More


Related Products

Power Up 12V, 55AH AGM Battery
ONLY: $138.05
Power Up 12V, 55AH AGM Battery

45 Watt 12 Volt Solar Power Kit
Model Number: SPM045P-KIT
Dimensions: 26.2 " x 21.1 " x 1.38 " / 666mm x 537mm x 35mm
Weight: 11 lb / 5kg
Number of solar cells and connections: 36 ( 4 x 9 )
Item Availability : IN STOCK

FEATURES
Power at STC ( PM ): 45 Watts
Maximum power voltage ( Vpm ): 18.3 Volts
Maximum power current ( Ipm ): 2.52 Amp
Open circuit voltage ( Voc ): 22.2 Volts
Short circuit current ( Isc ): 2.69 Amp
Tolerance: +- 5%

THIS KIT INCLUDES
45 Watt 12 Volt Solar Panel ( SPM045P-N )
Side of Pole universal mounting ( RAC-M-40 )
15FT Extension Wires / MC4 (CBL-15FT-MC4 )
4 Amp 12 Volt Solar Charge Regulator ( ASC12/4 )
LIMITS Operating temperature: -40 to + 85 ºC / - 40 to + 185 ºF Maximum system voltage: 1000V DC
Series fuse raiting: 12A

COMPONENTS AND MECHANICAL DATA
Front glass: 3.2mm tempered
Junction Box: IP-65 rated
Cable lengths: 3 ( ft )
Frame: Anodized aluminum alloy type 6063 - T5
Max Load: 5400Pa
