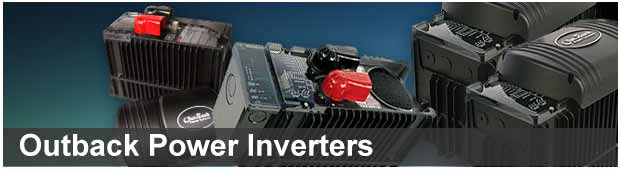

Outback GTFX and GVFX Grid Intertie
Inverters and Systems
The
Outback GTFX and GVFX series is a grid-tie version of the FX inverters.
Available as either turbo cooled and sealed, the GTFX, or internally
ventilated, the GVFX. With these inverters you can sell solar, wind
and hydro power back to the utility grid. When the utility power goes
out, the inverter will automatically switch to battery power and your
renewable sources to run your critical loads. The inverter can be set
so that either utility power or your renewable sources will recharge
the battery after an outage. To prevent AC power draw at night, automatic
“silent” sell mode is built in. Stacked inverters optimize
conversion efficiency by matching the number of inverters to the amount
of power being sold or used. Daily energy production is within a few
percentage points of a batteryless grid tie system (depending on battery
bank). 2 inverters can be stacked for 120/240v output. Until the improved
generator interface is developed, they are not recommended for off-grid
use. Two year warranty.
Outback Sealed Grid-Tie
Inverters
|
| Model |
Continuious
Watts |
Battery
Voltage |
AC
Out Volts/Hertz |
No
Load Draw |
Charger
Amps |
Weight
lbs |
Item
Code |
MSRP |
PRICE |
GTFX2524 |
2500 |
24VDC |
120V / 60Hz |
18-20W |
55A |
56 |
30.4025 |
$1995 |
$1,716.99 |
GTFX3048 |
3000 |
48VDC |
120V / 60Hz |
21-23W |
35A |
66 |
30.4030 |
$2095 |
$1,899.99 |
Outback
Vented Grid-Tie Inverters |
GVFX3524 |
3500 |
24VDC |
120V / 60Hz |
18-20W |
85A |
54 |
30.4032 |
$2345 |
$1,909.95 |
GVFX3648 |
3600 |
48VDC |
120 / 60Hz |
21-23W |
45W |
54 |
30.4036 |
$2345 |
$1,899.95 |
Outback
FX Sealed Inverters with Turbo Fan
The OutBack FX-series is designed to survive harsh environments anywhere
in the world. Their unique sealed, gasketed die-cast aluminum chassis
protects and keeps the power conversion components cool - without requiring
outside air to be blown through the sensitive electronics. This reduces
the major causes of inverter failure - corrosion, dust, insect and animal
damage. They can be used in high ambient temperature applications up
to 60°C with reduced output ratings.
Outback Sealed/Turbo
Cooled Off-Grid Inverters
|
| Model |
Continuious
Watts |
Battery
Voltage |
AC
Out Volts/Hertz |
No
Load Draw |
Charger
Amps |
Weight
lbs |
Item
Code |
MSRP |
PRICE |
FX2012T |
2000 |
12VDC |
120V/60Hz |
20W |
80 |
56 |
30.4147 |
$4995 |
$3,308.00 |
FX2524T |
2500 |
24VDC |
120V/60Hz |
20W |
55 |
56 |
30.4152 |
$2095 |
|
FX3048T |
3000 |
48VDC |
120V / 60Hz |
23W |
35 |
56 |
30.4153 |
$3345 |
$2,369.00 |
Export
Models - can be connected in parallel or 3-phase Y 400VAC |
| FX2012ET |
2000 |
12VDC |
230V/50Hz |
20W |
100 |
56 |
30.4140 |
$2995 |
|
FX2024ET |
2000 |
24VDC |
230V/50Hz |
20W |
55 |
56 |
30.4144 |
$2995 |
$2,469.00 |
FX2348ET |
2300 |
48VDC |
230V/50Hz |
23W |
35 |
56 |
30.4142 |
$2995 |
$2,469.00 |
OutBack
VFX Ventilated Inverters
The OutBack VFX series is a ventilated version of the original sealed
FX series modular inverter/charger
that can be used for both small and large power systems. By allowing
cooler outside airflow through the internal electronics, more AC power
is available and operation in extremely hot environments is improved
compared to the sealed FX series. The full screened vent openings are
“bug-proof” and the die-cast aluminum chassis protects and
keeps the power conversion components cool in very hot environments
even when operated at high power for extended periods. The VFX can be
used in high ambient applications up to 60oC (with reduced output ratings)
Ventilated inverters are a better choice when generator powered battery
charging is an important part of system battery charging. The fan cooling
allows far higher continuous battery charging current which results
in shorter generator run time. ETL listed. Standard 2-year warranty
with an available 5 year extended warranty.
Dimensions: 16.25”L x 8.25”W x 11.5”H.
Outback Ventilated Fan
Cooled Inverters
|
| Model |
Continuious
Watts |
Battery
Voltage |
AC
Out Volts/Hertz |
No
Load Draw |
Charger
Amps |
Weight
lbs |
Item
Code |
MSRP |
PRICE |
VFX2812 |
2800 |
12VDC |
120V/60Hz |
20W |
125 |
54 |
30.4149 |
$3345 |
$2,569.00 |
VFX3524 |
3500 |
24VDC |
120V/60Hz |
20W |
85 |
54 |
30.4155 |
$2345 |
|
VFX3648 |
3600 |
48VDC |
120V / 60Hz |
23W |
45 |
54 |
30.4157 |
$3345 |
$2,569.00 |
Export
Models |
| VFX2612E |
2600 |
12VDC |
230V/50Hz |
20W |
120 |
54 |
30.4134 |
$3345 |
|
VFX3024E |
3000 |
24VDC |
230V/50Hz |
20W |
85 |
54 |
30.4144 |
$3345 |
$2,679.00 |
VFX3048E |
3000 |
48VDC |
230V/50Hz |
23W |
42 |
54 |
30.4142 |
$3345 |
$2,679.00 |
|






|
 |
