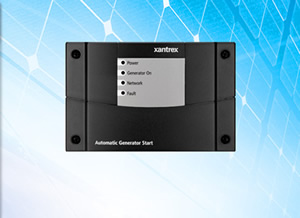

Schneider (Previously Xantrex) XW Automatic Generator Start (AGS)
The XW AGS is a Xanbus-enabled device that can automatically activate a generator to provide an XW Series Inverter/Charger with power to recharge depleted batteries or assist with heavy loads. Compatible with popular generators, the XW AGS adds intelligence to power management and eliminates time spent monitoring batteries and inverter loads. The XW AGS can be configured to start the generator in response to low battery voltage, thermostat operation, or load size on the inverter battery. A quiet-time setting prevents the generator from starting at inconvenient times. The LCD display shows the status of the XW AGS, while all user-defined settings are programmed through the XW System Control Panel.
The Xantrex XW Auto Generator Start (XW AGS) will automatically activate a generator to provide an XW Series Hybrid Inverter/Charger with power to recharge a depleted battery bank or provide additional power for heavy loads. The XW AGS adds intelligence to generator management, thereby eliminating time spent monitoring batteries and inverter loads. It does this by continuously monitoring the battery voltage, state-of-charge, or the inverter charge mode, starting and stopping the generator when the battery needs additional charging. The XS AGS will also start the generator to assist the system's inverter/charger(s) when output power demands are high.
The XW AGS can be customized to suit each user's preferences. The user can define whether the generator should be activated by low-battery voltage, state-of-charge, thermostat operation, or load on the inverter(s). A quiet-time setting prevents the generator from starting at inconvenient times. LED lights display the status of the XW AGS, while all user-defined settings are programmed through the XW system control panel (XW SCP).
Compatibility - the XW AGS connects to other Xanbustm enabled XW System devices without requiring additional hubs, control cards, or other device-specific control panels
Works with AC or DC generators with either two-wire or three-wire start controls
Configurability - comprehensive customizable triggers based on low-battery voltage, change in charging state, high inverter load, thermostat signals, planned exercise periods, max run-time, and quiet time settings.
Non-volatile memory - preserves XS AGS settings even if the network power is interrupted or network communication is disrupted.
LED display showing at-a-glance status
20-contact generator connector and three buitlt-in relays support 13 preset generator configurations
Build-in emergency shutdown
Interfaces with: XW Hybrid Inverter/Charger(s), XW Solar Charge Controller(s), and Xantrex System Control Panel.
Nominal input network voltage: 15 VDC
Maximum operation current: 200 mA Relay contact voltage rating: 12 VDC, 30 VDC max
Maximum relay contact current: 5 amps DC
Communication protocol: Xanbustm
Dimensions (HWD): 3.75" 5.75" x 1.5" (95.5 x 146 x 37 mm)
Weight: 0.5 lbs (0.22 kg)
Shipping weight: 1.7 lbs (0.77 kg)
Shipping Dimensions (HWD) 10.5" x 8.5" x 2.5" (267 x 216 x 64 mm)
Connectors: Two Xanbustm RJ45-8 pins, One 20-contact pluggable connector (Tyco Mate'n'Lok two connectors) - Wiring harness included
Mounting: Wall mount, 4 x #6 screws, included
Standard Warranty: five years
Part number: 856-1060
Enclosure type: Indoor
Operating temperature range: -4 to 122 F (-20 to 50C)
Storage temperature: -40 to 185F (-40 to 85C)
Safety: CSA certified to CSA 107.1-01 and UL 458 4th edition including the Marine Supplement
EMC: FCC Part 15B Class B Industry Canada, ICES-0003 Class B
