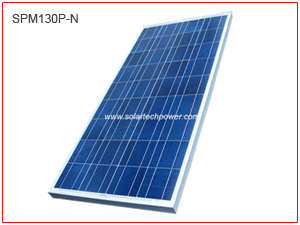

Solartech SPM130P-S-F 130 Watt 18 Volt Solar Panel

ONLY: $199.85
Item Number: SPM130P-S-F

| More



Mechanical

Type Poly
Dimensions 57.7" x 26.0" x 1.97"
Weight 26.51 lbs
Frame Anodized aluminum
Connector Junction Box - with 4-1/2" knockout for ease of installation

Electrical

Watts (STC) 130 W
Max Power Voltage (VMPP) 18.1 V
Max Power Current (IMPP) 7.38 A
Open Circuit Voltage (VOC) 22.0 V
Short Circuit Current (ISC) 7.89 A
Max System Voltage (UL) DC 600 V

Warranty

  • 10 Years, 90% output
  • 25 years, 80% output
  • 5-year limited warranty of materials and worksmanship

Documentation

Data Sheet Solartech SPM130P-S-F

Detailed Information

Solartech F-Series Modules

Solartech photovoltaic F-Series Modules are constructed with high efficient polycrystalline solar cells and produce higher output per module than others in it class. This industrial grade module is an industry standard among various industry professionals.

Features

  • Class 1, Division 2, (C1D2) Group A,B,C and D
  • Accessible junction box with 4-1/2" knockout for ease of installation.
  • (EVA) with TPT cushions the solar cells within the laminate an ensures the operating characteristics of the solar cells under virtually any climatic condition
  • Rigid anodized aluminum frame and low iron tempered glass
  • Easily accessible grounding points on all four corners for fast installation
  • Proven junction box technology

Applications

  • Traffic & Safety
  • Federal Government
  • Oil & Gas
  • Security
  • Telecommunications
  • Water and Wastewater
  • Weather & Environmental Monitoring
  • RV Camper
  • Emergency Power
  • Telemetry
  • SCADA, RTU, GPS
  • Marine
  • Area Lighting & Sign

Solartech Solar Panel Ordering Guideline

Example Model No: SPM005P-R-A
1. Solartech Modules Series
2. Cell type:
P: Polycrystal
M: monocrystal
R: Aluminum Frame (equal or less than 30W)
D: Picture Frame (equal or less than 30W)
A: Cable is 3M, no Ring connector(equal or less than 30W)
N: Cable is 1M, no Ring connector(equal or less than 30W)
F: 4 hole J-BOX no cable;not perforated
F4: 4 hole J-BOX +MC4 connector
F3: 4 hole J-BOX +MC3 connector
L1: 4 hole J-BOX no cable;open-hole at left
R1: 4 hole J-BOX no cable;open-hole at right
LR: 4 hole J-BOX no cable;open-hole at right and left
D2: 4 hole J-BOX no cable;two hole at down
TS(N): normal size (currently just used in SPM080P-TS)
TL: long type size (currently just used in SPM080P-TL)
WP: 33V solar module ,application voltage is 24V
S: Small size than normal
