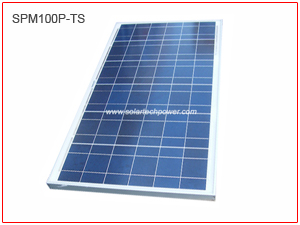

Solar Panel 100 Watt 12 Volt Policrystalline Silicon
Model Number: SPM100P-TS-N
Dimensions: 39.9 " x 26.3 " x 1.38 " / 1014mm x 669mm x 35mm
Weight: 19.81 lb / 9kg
Number of solar cells and connections: 36 ( 4 x 9 )
FEATURES
Power at STC ( PM ): 100 Watts
Maximum power voltage ( Vpm ): 17.0 Volts
Maximum power current ( Ipm ): 5.38 Amp
Open circuit voltage ( Voc ): 22.8 Volts
Short circuit current ( Isc ): 5.7 Amp
Tolerance: +- 5%
Product Warranty : 25 Years Limited Warranty
UL Certified : E330673
TUV : 0000022551
IEC: C1-ASN07001
ETL : 4001057
LIMITS
Operating temperature: -40 to + 85 ºC / - 40 to + 185 ºF
Maximum system voltage: 1000V DC
Series fuse raiting: 12A
COMPONENTS AND MECHANICAL DATA
Front glass: 3.2mm tempered
Junction Box: IP-65 rated
Frame: Anodized aluminum alloy type 6063 - T5
Max Load: 5400Pa
