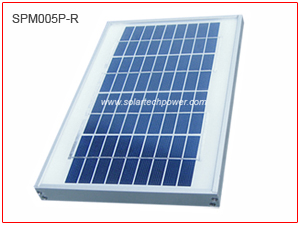

Solartech Power 5W, Pv Module SPM005P-R

ratingratingratingratingrating
Regular Price: $56.61
ONLY: $37.85
Item Number: SPM005P-R

| More



solar panel 5 watt 12 volt polycrystalline Solar Panel 5 Watt 12 Volt Policrystalline Silicon
Model Number: SPM005P-R
Dimensions: 13.8" x 8.8" x 0.98" / 350mm x 224mm x 25mm
Weight: 2.85 lb / 1.3kg
Number of solar cells and connections: 36 ( 4 x 9 )
Item Availability : IN STOCK
Download Manual

FEATURES

Power at STC ( PM ): 5 Watts

Maximum power voltage ( Vpm ): 17.1 Volts

Maximum power current ( Ipm ): 0.29 Amp

Open circuit voltage ( Voc ): 21.7 Volts

Short circuit current ( Isc ): 0.31 Amp

Tolerance: +- 5%

Product Warranty : 25 Years Limited Warranty

UL Certified : E330673

TUV : 0000022551

IEC: C1-ASN07001

ETL : 4001057
  LIMITS

Operating temperature: -40 to + 85 ºC / - 40 to + 185 ºF

Maximum system voltage: 600V DC

Series fuse raiting: 10A


COMPONENTS AND MECHANICAL DATA

Front glass: 3.2mm tempered

Junction Box: IP-65 rated

Cable lengths: 9 ( ft )

Frame: Anodized aluminum alloy type 6063 - T5

Max Load: 5400Pa
