Solaredge - SE100K-US

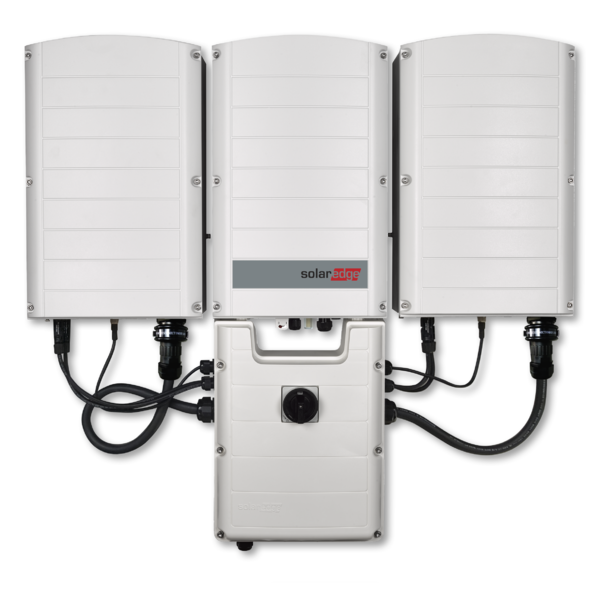

SolarEdge Three-Phase Synergy Inverters
SolarEdge's expanded offering of three phase inverters with synergy technology up to 100kW combines large capacity with ease of installation. The inverter design is based on small, lightweight, and easy-to-carry primary and secondary units. They are wall mounted for a minimal footprint, with installation only requiring a one or two-person crew.
No crane or special tools are needed for installing the inverter, unlike alternative large capacity inverters, which are heavy, bulky, and difficult to install. Installing SolarEdge’s large capacity inverters instead of using multiple, smaller capacity inverters will further reduce setup times and costs.
Note: One primary and one secondary for the SE66.6kW, one primary unit and two secondary for the SE100kW, and one primary unit and two secondary for the SE43.2kW.
Additional Highlights:
- Independent operation of each unit enables easy serviceability for high system uptime
- Connection to the SolarEdge monitoring platform via Ethernet or wireless communications, including optional built-in cellular GSM plug-in
- No wasted ground area: wall/rail mounted, or horizontally mounted under the modules (10° inclination)
- Designed for tough working environments
- Includes a built-in RS485 surge protection device plug-in, designed to protect the RS485 transceiver from electrical surges
- Integrated DC safety unit with DC safety switch and optional surge protection & DC fuses, eliminating the need for external DC isolators
- Built-in double RS485 plug-ins
| Length |
37.0 |
| Width |
12.5 |
| Height |
10.5 |
| Weight |
105.8 |
| Manufacturer Part Number |
SE100K-USRP0BNU4 |
| Warranty |
12-years |
| Description |
Primary unit for the SE100k, requires two secondary units. |
| Long Description |
SOLAREDGE, SE100K-USRP0BNU4, NON-ISOLATED STRING INVERTER-PRIMARY UNIT, 100 KW, 3PH Y, 277/480VAC, WITH AC RSD |
| Maximum Input String Voltage |
1000.0 |
|
|
