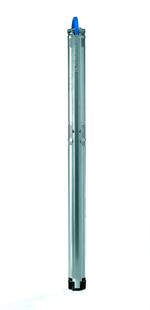

Grundfos 7S05-8 - 1/2 HP, 230 Volts, 1 Phase, 8 Stage, 3-Wire
Grundfos 31595085, Model 7s05-8, 7s-SP Series, 4" Multistage Submersible Well Pump (Complete with Pump, Motor and Motor Lead), 1/2 HP, 230 Volts, 1 Phase, 8 Stage, 2-Wire, 60 Hertz, 1" NPT, Discharge, 3450 RPM, 9.50 GPM Max., 224.29 ft Max. Head, 304 Stainless Steel
| Brand |
Grundfos |
| Mfg. Number |
31595085 |
| Model |
7s05-8 |
| Series |
7s-SP |
| Product Type |
4" Multistage Submersible Well Pump |
| Application |
Water supply, irrigation |
| Horsepower Required |
1/2 HP |
| Voltage |
230 Volts |
| Phase |
1 |
| Frequency |
60 Hz |
| Motor Lead |
2W |
| Motor Diameter |
4" Dia |
| RPM |
3450 RPM |
| Stages |
8 |
| Construction Material |
304 Stainless Steel |
| Motor Material |
304 Stainless Steel |
| Impeller Material |
304 Stainless Steel |
| Motor Type |
MS402 |
| Discharge |
1" NPT |
| Maximum Total Head |
224.29 ft |
| Maximum Flow |
9.50 GPM |
| Weight |
21.6 lb |
|
|
