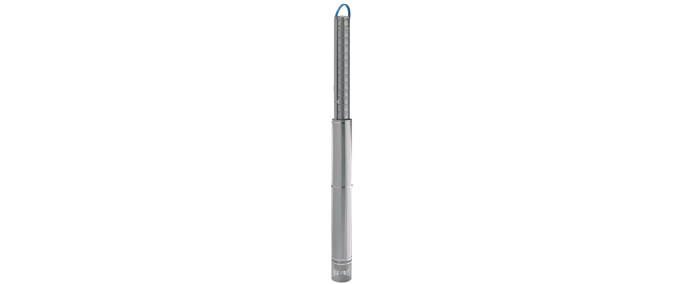

Grundfos 75S20-3 SP Sumbersible Pump, Franklin Motor & Control Box

ONLY: $1,282.35
Item Number: 75S20-3

| More




Franklin 2243019204GS Motor

2 HP 230 V 1 Phase 3 wire Franklin 4" Standard Submersible motor

  • Brand: Franklin
  • PN: 21637
  • MPN: 2243019204GS

Franklin 2823018310 Control Box

2 HP 230 V 1 Phase Franklin Submersible Motor Deluxe Control Box

  • Brand: Franklin
  • PN: 26819
  • MPN: 2823018310
  •
Grundfos 75S20-3 SP Sumbersible Pump End

Material #7110003, 2 Horse Power, 4" Motor Diameter, 2" Discharge Size, 4" Minimum Well Size.

Specifications

Product name 75S20-3
Product No. 71536035
EAN 5700394509299
Technical
Pump speed on which pump data is based 3450 rpm
Rated flow 17 m³/h
Rated head 21 m
Stages 3
Shaft seal for motor LIPSEAL
Approvals on nameplate CE,EAC,CSACOMP
Curve tolerance ISO9906:2012 3B
Pump Number 7110003
Model A
Valve pump with built-in non-return valve
Motor version T40
Materials
Pump Stainless steel
Pump DIN W.-Nr. 1.4301
Pump AISI 304
Impeller Stainless steel
Impeller DIN W.-Nr. 1.4301
Impeller AISI 304
Motor Stainless steel
Motor DIN W.-Nr. 1.4301
Motor AISI 304
Installation
Maximum ambient pressure 15 bar
Pump outlet 2"NPT
Motor diameter 4 inch
Liquid
Pumped liquid Water
Maximum liquid temperature 40 °C
Max liquid temperature at 0.15 m/sec 40 °C
Selected liquid temperature 20 °C
Density 998.2 kg/m³
Electrical data
Motor type MS402
Applic. motor NEMA
Rated power - P2 1.5 kW
Power (P2) required by pump 1.74 kW
KVA code L
Main frequency 60 Hz
Rated voltage 3 x 460 V
Service factor 1.25
Rated current 4.35 A
Starting current 540 %
Cos phi - power factor 0.75
Rated speed 3450 rpm
Axial load max 350 kg
Start. method direct-on-line
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Motor protection NONE
Thermal protec external
Built-in temperature transmitter No
Motor Number 79362006
