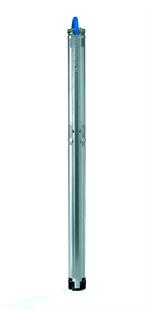

Grundfos 10S05-9, #9014209 10GPM 1/2HP 1PH 115V Well Pump 3 Wire

ONLY: $490.00
Item Number: 9014209

| More



Grundfos 10S05-9, Material #9014209, 1/2 Horse Power, 1 Phase, 115 Volts, 4" Dia, 3-Wire, 10 gallon per minute.

The complete pump DOES NOT include control box. Control box sold separately. Control Box required for 3-wire single phase applications.



STAINLESS STEEL CONSTRUCTION
Grundfos submersibles feature rugged and durable stainless steel construction for all vital pump components. Impellers, diffusers, shafts, vanes, cable guards, couplings...even the nuts and bolts are stainless steel. Grundfos’ 4-inch pump systems include the stainless steel pump, motor, and control box and are delivered ready to install.
Computer-aided design and manufacturing techniques ensure that each pump is built to exacting tolerance and performs to industry-leading standards. Grundfos state-of-the-art production equipment includes extensive use of robotics and advanced quality assurance procedures. You can rely on quality Grundfos’ groundwater products for outstanding pump
performance and best value.

SUBMERSIBLES
4-INCH and LARGER WELLS
The 4-inch submersibles line covers all flow requirements from 1.2 to 95 gpm and heads to 2000 feet. This broad range ensures proper pump selection for all domestic groundwater system applications.

Specifications

Product name 10S05-9
Product No 91595095
EAN number 5700394510844
Technical
Speed for pump data 3450 rpm
Stages 9
Shaft seal for motor LIPSEAL
Approvals on nameplate CE,EAC,CSACOMP,UR
Curve tolerance ISO9906:2012 3B
Pump No 9010009
Model A
Valve pump with built-in non-return valve
Motor version T40
Materials
Pump Stainless steel
Pump DIN W.-Nr. 1.4301
Pump AISI 304
Impeller Stainless steel
Impeller DIN W.-Nr. 1.4301
Impeller AISI 304
Motor Stainless steel
Motor DIN W.-Nr. 1.4301
Motor AISI 304
Installation
Maximum ambient pressure 15 bar
Pump outlet 1 1/4"NPT
Motor diameter 4 inch
Liquid
Pumped liquid Water
Maximum liquid temperature 40 °C
Max liquid t at 0.15 m/sec 40 °C
Liquid temperature during operation 20 °C
Density 998.2 kg/m³
Electrical data
Motor type MS402
Type of motor RSIR
Applic. motor NEMA
Rated power - P2 0.37 kW
Power (P2) required by pump 0.67 kW
KVA code R
Mains frequency 60 Hz
Rated voltage 1 x 230 V
Service factor 1,6
Rated current 6 A
Starting current 620 %
Cos phi - power factor 0,76
Rated speed 3450 rpm
Axial load max 350 kg
Start. method direct-on-line
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Motor protec CONTACT
Thermal protec internal
Built-in temp. transmitter no
Motor No 79952102
Others
Net weight 10.6 kg
Gross weight 11.8 kg
Sales region Namreg
