Outback FM80-150VDC MPPT Charge Controller

Regular Price: $849.00
ONLY: $509.85
Item Number: 020-02020
Please call for a shipping quote if outside the continental US.

| More

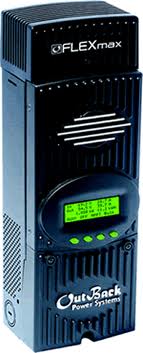

The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power Systems. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, this FLEXmax charge controller can operate at its full maximum current rating, 80 Amps, in ambient temperatures as high as 104F (40C). Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration. FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system. Specifications: Nominal Battery Voltages: 12, 24, 36, 48, or 60 VDC Maximum Output Current: 80 amps @ 104F (40C) with adjustable current limit Standby Power Consumption: Less than 1 Watt typical Status Display: 3.1" (8cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total Data Logging: Last 128 days of operation - amp hours, watt hours, time in float, peak watts, solar array voltage, max battery voltage, min battery voltage, and absorb for each day along with total accumulated amp hours, and kw hours of production Menu Languages: English & Spanish

Maximum Solar Array STC Nameplate
  • 12 VDC systems 1250 Watts
  • 24 VDC systems 2500 Watts
  • 48 VDC systems 5000 Watts
  • 60 VDC Systems 7500 Watts
NEC Recommended Solar Array STC Nameplate
  • 12 VDC systems 1000 Watts
  • 24 VDC systems 2000 Watts
  • 48 VDC systems 4000 Watts
  • 60 VDC Systems 5000 Watts
PV Open Circuit Voltage (VOC): 150 VDC absolute maximum, 145 VDC start-up and operating maximum
Standby Power Consumption: Less than 1 Watt typical
Power Conversion Efficiency: 97.5% @ 80 Amps in a 48 VDC System - Typical
Charging Regulation: Five Stages: Bulk, Absorption, Float, Silent and Equalization
Voltage Regulation Set points: 10 to 80 VDC user adjustable with password protection

Equalization Charging: Programmable Voltage Set point and Duration & Automatic Termination
Battery Temperature Compensation: Automatic with optional RTS 5.0 mV per °C per 2V battery cell
Voltage Step-Down Capability: Max 150 VDC input PV array can charge a lower voltage battery

Programmable Auxiliary Control Output:12 VDC (0.2 amp max) programmable output signal
Status Display: 3.1” (8 cm) back lit LCD screen - 4 lines with 80 alphanumeric characters total
Remote Display and Controller: Optional Mate or Mate2 with RS232 Serial Communications Port
Network Cabling: Proprietary CAT 5e Cable (8 wires) with RJ 45 Modular Connectors

Data Logging: Last 128 days of Operation - Amp Hours, Watt Hours, Time in Float , Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of production

Hydro Turbine Applications: Consult factory for approved Turbines

Positive Ground Applications: Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)

Operating Temperature Range: Minimum -40° to maximum 60° C
Environmental Rating: Indoor Type 1
Conduit Knockouts: One 1” (35mm) on the back; One1” (35mm) on the left side; Two 1” (35mm) on the bottom
Menu Languages: English & Spanish
Warranty: Standard 5 year

Weight Unit: 12.20 lbs (5.56 kg)
Dimensions Unit: 16.25” x 5.75” x 4” (41.3 x 14 x 10 cm) - (H x W x D)
Shipping Weight: 15.75 lbs (7.10 kg)
Shipping Dimensions : 21” x 10.5” x 9.75” (53 x 27 x 25 cm)

  • Remote Temperature Sensor (RTS)
  • HUB 4
  • HUB 10
  • MATE
  • MATE 2
Manufacturer Part Number FM80-150VDC
Warranty 5-years /Available 10-year
Max Current 80.0
Max Input Voltage 150 V
Max Power 12VDC 1000.0
Max Power 24VDC 2000.0
Max Power 48VDC 4000.0
NEMA Rating NEMA 1 (indoor)
Listing Ceritfications UL1741, CSA C22.2 No. 107.1
Arc Fault Protection Requires Separate Device
Length 21.0
Width 10.5
Height 9.75
Weight 15.75  LB
Volume 2149.875  CIN

Product Reviews

Rate This Product:
or Create a Review
(15 Ratings, 1 Review) Average Rating:
No Problems
Dan (Virginia) 4/17/2014 5:38 PM
I bought one of these a couple of years back but I've only recently got everything hooked up and running. The charge controller seems to be well built and works as advertised. I have about 90 volts dc comming from my solar panels and it steps the voltage down and steps the current up just as you would expect from a MPPT charger. It can auto detect whether your battery array is 12, 24 or 48 volts and it will charge them accordingly. I believe incomming voltage from the solar panels can be as high as 150 volts, which allows you to string panels in series and save money on transmission cable and dc breakers. I am using a 24 volt battery array with a 3524 outback inverter and I have pretty much maxed out the charging capability for one charge controller. So far, everything from outback has been great (although it is somewhat pricey). I haven't had to call on Outback for technical support, so I can't comment on that. All in all, I am happy with this charge controller and I am considering buying another.
