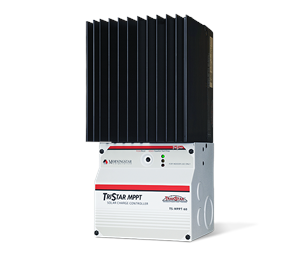

Morningstar TS-MPPT-60 Tristar 60 Amp MPPT Charge Controller

Regular Price: $914.00
ONLY: Call for Pricing
Item Number: 020-01110

| More

Related Products

Morningstar TS-M-2 Tristar Digital Meter for TS-MPPT Charge Controller
Regular Price: $151.00
ONLY: $106.00
Morningstar TS-M-2 Tristar Digital Meter for TS-MPPT Charge Controller
Morningstar TS-RM-2 Remote Digital Meter
Regular Price: $189.00
ONLY: $130.00
Morningstar TS-RM-2 Remote Digital Meter

RTS (remote temperature sensor) included.

TriStar MPPT



Maximum Battery Current

45 amps

60 amps

Nominal Maximum Solar Input

12 volt

600 Watts

800 Watts

24 volt

1200 Watts

1600 Watts

48 volt

2400 Watts

3200 Watts

Nominal System Voltage

12, 24, 36 or 48 volts DC

Maximum Solar Open Circuit Voltage

150 volts DC

150 volts DC

Product Description


Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.

The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.

Morningstar offers a TriStar MPPT One-Hour Training Program that covers the major features and benefits of the product, system considerations and sizing tools, networking and communications (including Ethernet), and metering and data logging.

Maximizes Energy Harvest

TrakStar MPPT Technology features:

  • Better peak power point tracking than other MPPT controllers
  • Very fast sweeping of the entire I-V curve
  • Recognition of multiple power points during shading or mixed PV arrays
  • Excellent performance at sunrise and low solar insolation levels

Extremely High Reliability

  • Robust thermal design and no cooling fans
  • Parallel circuit design provides less stress and longer life for electronic components
  • No mechanical relays
  • Extensive electronic protections including PV short circuit protection
  • Epoxy encapsulated inductors and conformally coated printed circuit boards

Very High Efficiency

  • Peak efficiency of 99%
  • Proprietary tracking algorithm minimizes power losses
  • Low self-consumption
  • Continuous operation at full power to 45°C without need to de-rate
  • Selected electronic devices with higher ratings to minimize losses from heating

Extensive Networking and Communications Capabilities

Enables system monitoring, data logging and adjustability.  Uses open standard MODBUS™ protocol and Morningstar's MS View software.

  • Meterbus:  communications between compatible Morningstar products
  • Serial RS-232:  connection to a personal computer
  • EIA-485:  communications between multiple devices on a bus
  • Ethernet:  fully web-enabled interface to a local network or internet; view from a web browser or send email/text messages

Metering and Data Logging

  • Optional TriStar meter and remote meter provides detailed operating data, alarms and faults
  • Three LED's display system status
  • Up to 200 days of data logging via meters or communications ports
