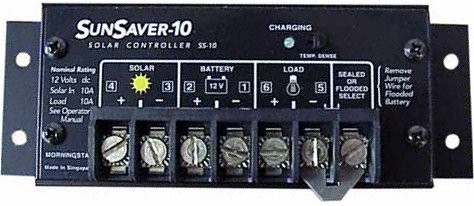

Morningstar SS-10-12V SunSaver 12V 10A Solar Charge Controller

Regular Price: $64.94
ONLY: $50.00
Item Number: 020-01230

| More



A high quality, reliable and economically priced charge controller from Morningstar. Features their advanced PWM pulse charging algorithm.

Other features include selectable battery type and temperature compensation. Optional controller to battery cable with correct connectors, additional $9.95.

Specifications:

Model #: SS-10-12V
LVD (low voltage disconnect): No
Vdc (voltage direct current): 12V
Solar Amps: 10 A
Load Amps: 10 A
Weight: 1 lb. / .45 kg
Dimensions: 5.9" x 2.1" x 1.3" / 149.86 x 53.4 x 33.02 mm
Warranty info: 5 year warranty from manufacturer

Data Sheet

Sunsaver 10 Amp Charge Controller 12V

Product Reviews

Rate This Product:
or Create a Review
(2 Ratings, 2 Reviews) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Great Product Support
TJ (Arkansas) 1/28/2015 11:19 PM
I have used this controller for 10 years on a large boat dock system that provides 12 volt power for lighting, and 110v AC via a 2000watt inverter. Although the original failed after that time, I was able to diagnose the problem with the on-line product documentation from Morningstar, and their tech support confirmed my diagnosis. Solarhome shipped my replacement the day I ordered it, and I had it in 3 days, USPS! Great product, and great service from both Morningstar and Solarhome!
ratingratingratingratingrating
Sr. Energy Conservation Engineer
James White (Wenatchee, Washington USA) 9/26/2012 12:53 PM
I have used this controller to keep the batteries charged on a solar powered go-kart. It has worked fine for many years. It is simple and effective. It's main purpose is to keep the battery from being overcharged. It does not have maximum power point tracking like the more expensive controllers, but is well worth the price. I have not used the Load connections on the controller, so I cannot say how well that feature works.
