These panels come in pallet quantities of 30. If you would like to order less than a pallet please call our customer service.LIMITED QUANTITY AVAILABLE
SunWize Solar Modules deliver top-quality performance for all photovoltaic applications including rural electrification, water pumping, telemetry, communications, and general battery charging. SunWize modules can be used in single-module and multiple-module installations and are ideal for high voltage grid-tied inverters. Each module consists of 48 solar cells connected in series providing maximum charging power.
Features:
* Single crystalline solar cells are encapsulated and bonded to the glass in multiple layers of ethylene vinyl acetate (EVA) and laminated with a white Tedlar backing insuring long life in severe environmental conditions.
* The glass surface allows maximun light transmission and is impact resistant to hailstone forces up to 5 ft-lbs
* A weather resistant junction box accommodates all wiring methods including moisture-tight strain relief connectors and electrical conduit.
* Pre-drilled mounting holes.
* Bypass diodes contained within the junction box insure reliable operation.
* Anodized aluminum tubular frames add strength and durability to the modules and are constructed to withstand constant wind speeds of 110 mph and gusts to 133 mph.
* SW modules are manufactured to comply with U.S. and international standards, and are UL listed and carry a 25-year, 80% power output warranty.
Electrical Characteristics
Model Rated Power: 100 watts
Rated Voltage (Vmp): 23.0 volts
Rated Current (Imp): 4.35 amps
Open Circuit Volatage (Voc): 28.5 volts
Short Circuit Current (Isc): 5.00 amps
Mechanical Characteristics
Dimensions: 58" x 27" x 1.33" (1473 x 686 x 33.8 mm)
Weight: 26 lbs (354 kg)

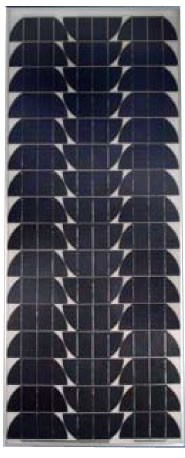

Note: Image is unavailabe, the image show is a previous version.
Note: Three of these modules in series form a 48 volt string.
Sunwize SW100C 100 Watt Solar Module 23Vmp
