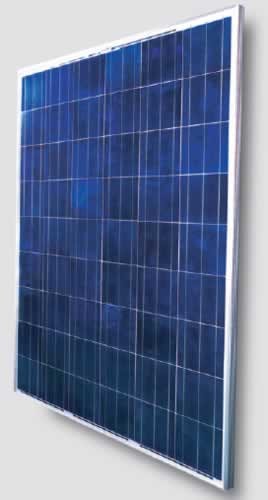

These panels come in pallet quantities of 26. If you would like to order less than a pallet please call our customer service.SunTech Power STP200-18/Ud, 18 Volt 200 Watt PV Module
SUNTECH
Solar powering a green futuretm
210 Watt Maximum Power
POLY-CRYSTALLINE SOLAR PANEL
Features
* High conversion efficiency based on leading innovative photovoltaic technologies
* High reliability with guaranteed +/-3% power output tolerance, e3nsuring return on investment
* Attractive appearance
* Withstands high wind-pressure and snow load, and extreme temperature variations
* Easy to install
Quality and Safety
* 25-year power output transferable warranty with PICC insurance
* Rigorous quality control meeting the highest international standards
* IOS 9001:2000 (Quality Management System) and ISO 14001:2004 (Environmental Management System) certified factories
* IEC621215, Safety tested IEC61730, conformity to CE, UL listings: UL1703, cULus, Class C fire rating
Recommended Applications
* On-grid utility systems
* on-grid commercial systems
* off-grid ground mounted systems
Suntech's technology yields improvements to BSF structure and anti-reflective coating to increase conversion efficiency.
Unique design on drainage holes and rigid construction prevents frame from deforming or breaking due to freezing weather and other forces.
Thermal isolation between the lamination and an advanced specially designed J-box delivers improved performance stability. It also provides complete interconnection between modules and inverters ensuring that the efficiency of the modules can be fully utilized.
The panel provides more field power output through an advanced cell texturing and isolation process, which improves low irradiance performance.
Suntech was named Frost and Sullivan's 2008 Solar Energy Development Company of the Year
Electrical Characteristics
Characteristics STP200-18/Ud
Open Circuit Voltage (Voc): 33.4 volts
Optimum Operating Voltage (Vmp): 26.2 volts
Short Circuit Current (Isc): 8.12 amps
Optimum Operating Current (Imp): 7.63 amps
Maximum Power at STC (Pmax): 200 watts
Operating Temperature: -40C to 85C
Maximum System Voltage: 1000 VDC
Maximum Series Fuse Rating: 20 amps
Power Tolerance: 3%
STC Irradiance 1000withm2, Module temperature 25C, AM=1.5
Mechanical Characteristics
Solar Cell: Poly-crystalline 6" (156 x 156mm)
Number of Cells: 54 (6x9)
Dimension of module: 58.3" x 39.1" x 1.4" (1482 x 992 x 35mm)
Weight: 37.0 lbs. (16.8 kg)
Front Glass: 0.13" (3.2mm) tempered glass
Frame: Anodized aluminum alloy
Junction Box: IP67 rated
European Output Cables: RADOX SMART cable 0.006 inch2 (4.0mm2, symmetrical lengths (-) 39.4" (1000 mm) and (+) 39.4" (1000 mm), RADOX SOLAR integrated twist locking connectors
American Output Cable: MC4
Temperature Coefficients
Nominal Operating Cell Temperature (NOCT) 452C
Temperature Coefficient of Pmax: -(0.470.05)%/C
Temperature Coefficient of Voc: -(0.340.01)%/C
Temperature Coefficient of Isc: -(0.0550.01)%/C
Suntech Power Stp200-18/Ub 200W 18V Solar Panel
