These panels come in pallet quantities of 26. If you would like to order less than a pallet please call our customer service.SunTech Power STP170S-24Ab-1 24 Volt 170 Watt PV Module
Suntech's STPAb-1 is designed and built to delver highest efficiency and reliable power for on-grid residential and commercial systems worldwide. Relying on Suntech's well-known stringent manufacturing standards and latest PV technology, the module provides the highest possible energy output per Watt with total module efficiency of 14.1%. Superior conversion rate and exceptional low-light performance enable it to deal with the most challenging conditions of military, utility, residential and commercial installations. The module is the perfect choice for those who demand outstanding performance and exceptional uniform appearance.
Features and benefits
* High efficiency
* Nominal 24 V DC for standard output
* Outstanding low-light performance
* High transparent low-iron, tempered glass
* Unique techniques give the panel following features: aesthetic appearance, withstands high wind-pressure and snow load, and easy installation
* Unique technology ensure that problems of water freezing and warping do not occur
* Design to meet unique demand of customer
* 25 year power output warranty
Electrical Characteristics
Model: STP170S-24Ab-1
Open circuit voltage (Voc) 43.8v
Optimum operating voltage (Vmp): 35.2v
Short circuit current (Isc) 5.14a
Optimum operating current (Imp): 4.83a
Maximum power at STC (Pm): 170Wp
Operating temperature: -40C to +85C
Maximum system voltage: 600VDC
STC: Irradiance 1000withm2, Module temperature 25C, AM=1.5
Warranty
25 year limited power Warranty
5 year product warranty
Certifications
UL listed (UL 1703)
Class C Fire Rating
Specifications
Cell: Mono-crystalline silicon solar cells 125 x 125mm
No. of cells and connections: 72 (6 x 12)
Dimension of module: 62.20" x 31.81" x 1.38" (1580 x 808 x 35mm)
Weight: 34.1 lbs. (15.5 kg)
Maximum series fuse rating: 15a
Temperature and Coefficients
NOCT*: 45C 2C
Short-circuit current temperature coefficient: 0.017%/K
Open-circuit voltage temperature coefficient: -0.34%/k
Peak power temperature coefficient: -0.48%/K
Power tolerance: 3%
*NOCT: Nominal Operation Cell Temperature
Output
Cable: A.I.W. #12 AWG (4.0 mm sq.)
Lengths: 1200mm(-) and 800mm(+)
Connection: MC 4

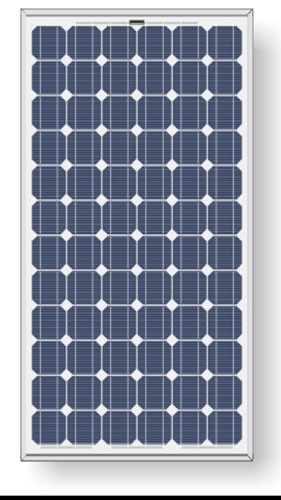

Suntech Power Stp170S-24Ab-1 24 Volt 170 Watt Solar Panel
