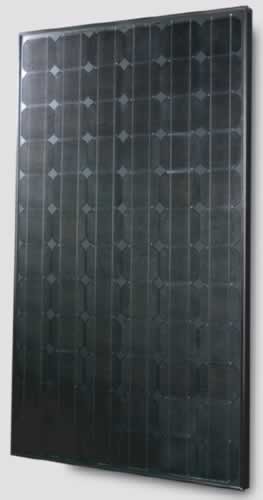

These panels come in pallet quantities of 26. If you would like to order less than a pallet please call our customer service.SunTech Power STP170S-24Ab-1 Black Label 24 Volt 170 Watt PV Module
SUNTECH
Solar powering a green future
170 Watt
MONO-CRYSTALLINE SOLAR PANEL
Suntech Black LabelTM modules are exclusively designed and engineered for home owners who seek a roof top solar solution that combines visual aesthetics with excellent efficiency.
Features
* high conversion efficiency based on innovative photovoltaic technologies
* High reliability with guaranteed +/-3% power output tolerance
* Withstands high wind pressure and snow load, and extreme temperature variations.
Quality and Safety
* 25-year power output transferable warranty
* Rigorous quality control meeting the highest international standards
* ISO 9001:2000 (Quality Management System) and ISO 14001:2004 (Environmental Management System) certified factories manufacturing world class products
Recommended Applications
* Residential roof top systems
* On-grid utility
* On-grid commercial systems
Suntech's technology yields improvements to BSF structure and anti-reflective coating to increase conversion efficiency
The panel provides more field power output through an advanced cell texturing and isolation process, which improves low irradiance performance
Unique design on drainage holes and rigid construction prevents frame from deforming or breaking due to freezing weather and other forces
Suntech was named Frost and Sullivan's 2008 Solar Energy Development Company of the Year
Electrical Characteristics
Model: STP170S-24Ab-1 Black Label
Open circuit voltage (Voc) 43.8v
Optimum operating voltage (Vmp): 35.2v
Short circuit current (Isc) 5.14a
Optimum operating current (Imp): 4.83a
Maximum power at STC (Pm): 170Wp
Operating temperature: -40C to +85C
Maximum system voltage: 600VDC
Maximum Series Fuse Rating: 15 amps
Power Tolerance 3%
STC: Irradiance 1000withm2, Module temperature 25C, AM=1.5
Mechanical Characteristics
Solar Cell: Mono-crystalline 5" (125 x 125mm)
No. of cells: 72 (6 x 12)
Dimension: 62.20" x 31.81" x 1.38" (1580 x 808 x 35mm)
Weight: 34.1 lbs. (15.5 kg)
Front Glass: 0.13" (3.2 mm) tempered glass
Frame: Anodized aluminum alloy
Junction Box: 1P65 rated
Output Cable: A.I.W. #12 AWG (4.0 mm sq.) asymmetrical lengths: 47.2" (1200mm) (-) and 31.5" (800 mm) (+)
Connection: MC 4
Temperature and Coefficients
NOCT*: 45C 2C
Temperature Coefficient of Pmax: -0.48%/K
Temperature coefficient of Voc: -0.34%/k
Temperature coefficient Isc: 0.017%/K
Suntech Power Stp170S-24Ab-1 170 Watt 24 Volts Solar Panel Black Label
