Solar Top-of-Pole Mounts (TPM) G-H Series - TPM8-H-SERIES

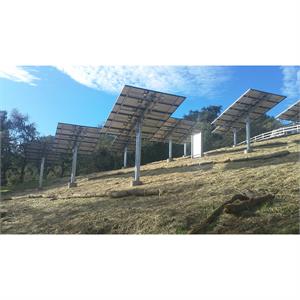

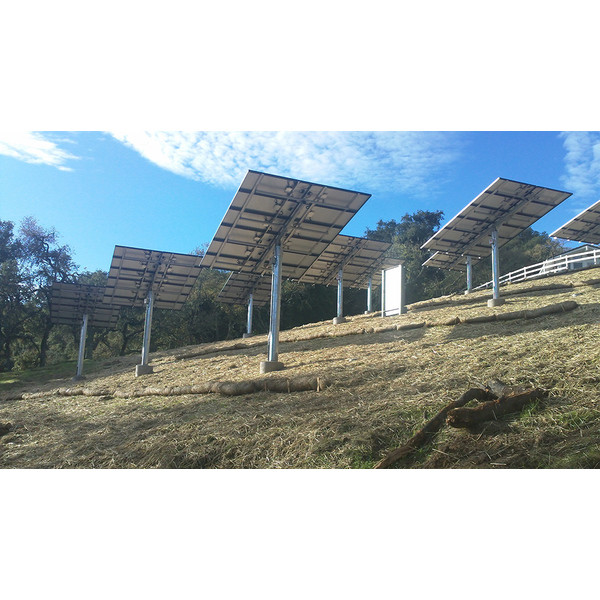

PLP Solar Top-of-Pole Mounts (TPM) G-H Series
Preformed Line Products (PLP) standard Top-of-Pole mounts have heavy steel mounting sleeves, elevation pivots, and strongbacks that are coated with durable outdoor paint. The module rails are 6061-T6 mill-finish structural aluminum angles. Stainless steel module mounting hardware is provided. Standard top-of-pole mounts are adjustable from 15° to 65°, in 10° increments, and fit on Schedule 40 or 80 steel pipe.
For harsh environments, upgrades to hot-dip-galvanized steel or anodized aluminum rails are available. Use the tables below to determine the layout and minimum pipe size.
The Online Configurator at http://preformed.com/solar/commercial/ground-mounts/top-of-pole-mount-tpm can be used to generate the specific configuration and bill of materials needed based on module number and type, array location, and environmental conditions (wind, snow, desired tilt, etc.). A DPW Request for Information Form provides the TPM’s foundation specifications including the correct pipe length, schedule, and foundation size requirements. An Engineering Stamp can be included from DPW through a third -party engineer for additional cost.
Length 120.0 Width 36.0 Height 24.0 Weight 225.0 Configuration 4H x 2W-L
|
|
