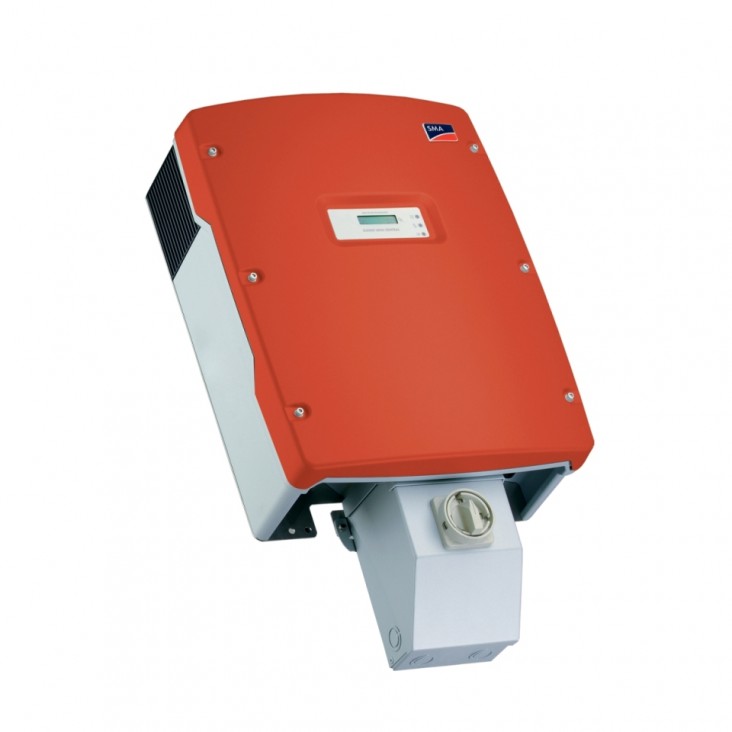

SMA Sunny Boy 9000TL-US

Regular Price: $5,974.02
ONLY: $3,197.85
Item Number: 030-03176

| More


A Sunny Boy 8000TL-US/ 9000TL-US/ 10000TL-US

Transformerless design. Maximum yields.

The new Sunny Boy TL-US series is UL-listed and features SMAs innovative H5 topology, resulting in superior efficiencies of up to 98 percent and unmatched solar yields. The transformerless design reduces weight, increases the speed of payback and provides optimum value for any decentralized, commercial PV system. The Sunny Boy TL-US series for North America is the ideal choice for mid-size and large plants from 24 kWp up to the megawatt range.


Efficiency
Peak Inverter Efficiency:
98%
CEC Weighted Efficiency:
98%
Input Data (DC)
Recommended PV Input (STC):
11250W
Maximum DC Input Voltage:
600V
Maximum DC Input Current:
31A
Number of MPP trackers / fuse-protected strings per MPP tracker
1 / 6 (@ Combiner Box)
Min. DC voltage / Start voltage
300V / 360 V
Output Data (AC)
AC Nominal Voltage:
208 V
AC Output Power (Watts):
9,000 Watts
Power Factor:
0.99
AC voltage range
183 V 229 V
Max. output current
49 A
Watts Category:
7,001 - 10,000 Watts
Mechanical Specifications
Dimensions:
18.5 × 24 × 9 inches
Weight:
77 pounds
Interfaces: RS485 / Bluetooth
Optional / Optional
Topology
Transformerless H5
