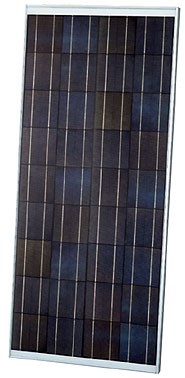

Sharp's ND-130UJF 130 Watt solar panels offer industry-leading performance, durability, and reliability for a variety of electrical power requirements. Using breakthrough technology perfected by Sharp's nearly 45 years of research and development, these modules use a textured cell surface to reduce reflection of sunlight, and BSF (Black Surface Field) structure to improve conversion efficiency. An anti-reflective coating provides a uniform blue color and increases the absorption of light in all weather conditions.
# Designed for RVs, Homes, Boats, Back-up & Remote Power Use, 12 Volt Battery Charging and Solar Power Stations, Pumps, Beacons, and Lighting Equipment
# High Efficiency Polycrystalline Cells
# Easy to Install & Maintenance Free
# Weatherproof
# Connect Multiple Panels for More Power
Specifications:
Max. Power*: 130 Watts
Voltage at Maximum Power (Vmp): 17.4 V
Current at Maximum Power (Imp): 7.5 A
Open Circuit Voltage (Voc): 21.9V
Short Circuit Current (Isc): 8.2 A
Type of Solar Material: Polycrystalline silicon
Module Efficiency(%): 13.1%
Weight: 30.86 lbs./14 kg
Dimensions: 59.02" x 26.06" x 1.81"/1499 x 662 x 46 mm
Connector/wiring info: Junction box
Warranty info: 25 years, contact Sharp for details
*Measured at (STC) Standard Test Conditions: 25C, 1 kW/m2 insolation, AM 1.5
Spec Sheet
