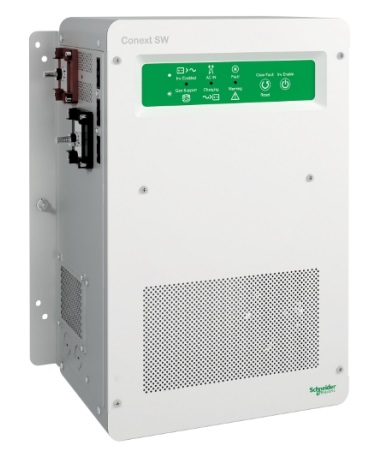

• Schneider Electric Conext SW 4024 Inverter/Charger120/240Vac




  The Conext™ SW solar inverter/charger delivers new value and a new price point to the marketplace in 2013. Conext SW is a pure sine wave, inverter/charger system with switchable 50/60 Hz functionality available for both 120/240 Vac or 230 Vac models

  North American units feature split-phase input and output without the need for an external transformer. Available DC and AC switchgear panels, display control panel, remote monitoring and automated generator control modules present even more value. Stacking Conext SW units will double the power and available solar charge controllers allow for the integration of solar capacity as required.


  Features
  Easy to Install
  • Configures quickly into compact wall-mounted system
  • Companion switchgear integrates inverter with battery bank and solar charge controllers
  Flexible
  • All models support both 50 Hz and 60 Hz output
  • All models support stackable power
  Easy to Service
  • Remote monitoring and configuration
  • Global support

  Electrical Specifications—Inverter
  • Output power continous: 3,500 W
  • Output power (30 min): 4,000 W
  • Surge rating: 7,000 W (5 seconds
  • Peak current: 41 A
  • Output frequency: 50/60 Hz selectable
  • Output voltage: 120/240 Vac
  • Output wave form: True sine wave
  • Optimal efficiency: 92%
  • No-load power draw (inverting): 40 W
  • Input DC voltage range: 20 – 34 Vdc
  • AC connections: Single-/Split-phase
  Electrical Specifications-Charger
  • Output current: 90 A
  • Nominal output voltage: 24 Vdc
  • Output voltage range: 12 – 32 Vdc
  • Charge control: Three-stage
  • Charge temperature compensation: Yes — BTS included
  • Optimal efficiency: 90%
  • AC input power factor: > 0.98
  • Input current: 14 A
  • Input AC voltage: 120/240 Vac split-phase
  • Input AC voltage range line to neutral: 78 – 140 Vac
  • Dead battery charge: Yes
  General Specifications
  • Compatible battery types: FLA, Gel, AGM, Custom
  • Transfer relay rating: 30 A
  • Transfer time(AC to inverter and inverter to AC):< 1 cycle (16.7 ms)
  • Optimal operating temperature range: -20 °C to 60 °C(-4 °F to 140 °F)
  • Storage ambient temperature range: -40 °C to 85 °C(-40 °F to 185 °F)
  • Product weight: 30.4 kg (67.0 lb)
  • Shipping weight: 32.7 kg (72.0 lb)
  • Product dimensions (H x W x D): 41.8 x 34.1 x 19.7 cm 16.5 x 13.4 x 7.6 in)
  • Shipping dimensions (H x W x D): 56.0 x 44.0 x 32.0 cm(22.0 x 17.3 x 12.6 in)
  • System network and remote monitoring: Available
  • Warranty: Two-year standard
  • Part Number: 865-4024
  Regulatory Approvals
  • Safety: c(CSA) U.S. mark/CSA C22.2 No. 107.1-01/UL 1741 Ed. 2
