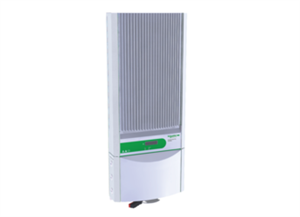

Schneider Conext 3300 Grid Tie Inverter TX 3300 NA 878-3301
Schneider Conext 3300 Grid Tie Inverter
Main
Range of product: Conext NA
Device short name: TX 3300 NA
Product or component type: Grid-tie solar inverter
Network number of phases: Single phase
Nominal output power:
3.3 kW AC - 240 V
3.1 kW AC - 208 V
Complementary
Output voltage: 240 V AC single phase, 208 V AC single phase
Output current: 13.8 A AC - 208 V, 14.9 A AC - 240 V
Network frequency: 60 Hz (output)
Cos phi: >= 0.99 at rated power (output), >= 0.95 at full power range (output)
Harmonic distortion: < 3 %
Input voltage: 195...550 V DC MPPT - CEC & CSA 600 V DC open circuit
Input current:
24 A DC - open circuit
18 A DC - open circuit
17 A DC - short circuit
Overcurrent protection: 20 A (output)
Reverse polarity protection: Short-circuit diode
Efficiency:
94.5 % peak - 240 V
95.6 % CEC - 208 V
95 % peak - 208 V
95.3 % CEC - 240 V
Power consumption in W: 1 W night time
Topology: Transformer, Isolated
Function available: GF detection, IDIF > 1 A
Display type: LCD
Messages display capacity: 2 lines of 16 characters
Communication interface: Xanbus RJ45, RS232
AWG gauge: 14...6
Type of cooling: Convection fan not required
Device mounting: Wall mounted
Height: 88.8 cm
Width: 40.3 cm
Depth: 18.5 cm
Product weight: 31.75 kg
Environment
NEMA degree of protection: NEMA 3R
Ambient air temperature for operation: -25...65 °C
Standards:
UL 1741
CSA 107.1-01
IEEE 1547
CSA 2
C22.2 No.107-1-01
|
|
