RV Solar Power Kit 55 Watt 12 Volt - RV, Camping

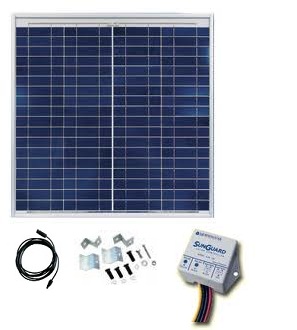

The 55W Kit includes a Single Solar Panel, 15' extension wire kit, mounting hardware, and a 4 amp charge controller.
Specifications:
* 1 x 55W Solar Panel
* 1 x RV Roof Mount Hardware
* 1 x 4 amp Charge Controller
* 1 x 15 FT Extension Wire kit w/ MC4 Connectors
Please Note: These modules are not currently UL listed
Sunwize
Solar Module
SW-S55P 55 Watt
The SunWize SW-S55P solar module delivers top-quality performance for all photovoltaic applications including telemetry, communications, security, rural electrification, water pumping and general battery charging. The SW-S55P can be used in single-module and multiple-module installations. Each module consists of 72 solar cells connected in series providing sufficient voltage for battery charging under extreme high temperatures. The modules are manufactured according to the strict requirements of international and US quality standards. Warranty: 2 -Year Limited Warranty of materials and workmanship; 10 -Years Limited Warranty of 90% minimum power output.
Features
Impact resistant glass surface allows maximum light transmission.
Polycrystalline solar cells are encapsulated and bonded to the glass in multiple layers of ethylene vinyl acetate (EVA) and laminated with a white Tedlar backing insuring long life in severe environmental conditions.
A weather resistant junction box accommodates all wiring methods including moisturetight strain relief connectors and electrical conduit. Bypass diodes insure reliable operation.
Anodized aluminum tubular frames add strength and durability. Frames come with predrilled mounting holes.
Electrical Specifications
Model
SW-S55P 55
Rated Power (Watts) 55
Rated Voltage (Vmp) 17.4V
Rated Current (Imp) 3.15A
Open Circuit Voltage (Voc) 22.0V
Short Circuit Current (Isc) 3.3A
The Morningstar SunGuard 4-12V, 12 volt, 4.5 amp charge controller
Morningstars SunGuard is the most advanced small, economical solar charge controller on the market today.
The MorningStar SunGuard is a fully epoxy encapsulated outdoor rated 4.5A "ice cube" sized 12V PWM charge controller. It has built-in temperature compensation, lightning protection and easy 4-wire hookup. The SunGuard's regulation voltage is set at 14.1 (best for sealed or gel batteries) and is not adjustable for battery type like MorningStar's other controllers. It's dimensions are 2.5" x 2.0" x 1.5" and it weighs just 3 oz.
Features:
ISO 9002 quality programs
Series design (not shunt)
100% solid state
True 0 to 100% PWM duty cycle
Setpoint accuracy to 60 mV
Temperature compensation
Rated for 25% overloads
No need to derate
Lightning protected with 1500 W transorbs
Self-consumption is 6 mA
Fully encapsulated in epoxy potting
ABS plastic, impact-resistant case
Outdoor rated, Hypalon connecting wires
Standard Controller Features
Temperature compensation
High level of lightning protection
Computerized production testing
Ambient temperatures of -40° C to + 60° C
Expected 15 year life
Parallel capability for higher current ratings
Easy to use
Constant voltage, PWM series charging
Reverse current protection (at night)
ISO 9002 manufacturing
High efficiency, low self-consumption
Tropicalization: Epoxy or conformal coating
Five year warranty
No need to derate - 25% design margin
SunGuard's Technology Provides:
Exceptional Reliability
PWM Battery Charging
Consistent High Quality
Low Cost
The SunGuard is able to match the quality and performance of the world-leading SunSaver controllers because:
SunGuards are made on the same high speed, automated production lines
SunGuards use the same charging circuit
SunGuards use the same high quality components
