The new FLEXpower ONE System accommodates all of the essential
protective devices in the smallest possible space at the lowest
installed cost making it ideal for applications with modest power
requirements such as cabins, chalets, homes, remote communication
sites and back-up power systems. Utilizing an extremely compact
design and an easy-to-install mounting bracket, the fully pre-wired
and factory tested FLEXpower ONE System is designed for a quick
installation, saving both time and money.

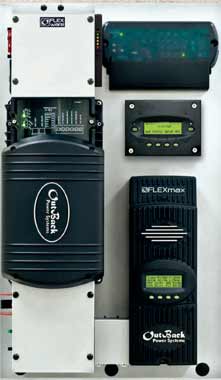

FLEXpower ONE includes a single inverter, AC and DC wiring
boxes, a single FLEXmax Charge Controller, MATE, HUB, FLEXnet DC
and Surge Protector while maintaining a small system footprint.
The FLEXpower ONE System is also equipped with battery and
PV array breakers, a PV GFDI breaker, an Input-Output-Bypass
Assembly, mounting locations for both AC GFCI Type B and EU
Type F style outlets and additional AC breakers. FLEXpower ONE
components carry all of the necessary ETL Certifications allowing
for a code compliant installation that saves both time and money
while still looking great.
The OutBack Power FLEXpower ONE System is the only choice when
you need a fully integrated, true sinewave, reliable power system.
Prewired Systems* Description
FP1-1 FLEXpower ONE, Prewired AC and DC boxes with 120VAC Bypass and Type B Outlet, 250ADC breaker, GFDI, 80 amp charge
controller breaker, VFX3524, MATE2, HUB4, RTS, FLEXmax 80, FLEXnet DC and surge protector for 120V 60Hz applications
FP1-2 FLEXpower ONE, Prewired AC and DC boxes with 120VAC Bypass and Type B Outlet, 175ADC breaker, GFDI, 80 amp charge
controller breaker, VFX3648, MATE2, HUB4, RTS, FLEXmax 80, FLEXnet DC and surge protector for 120V 60Hz applications
FP1-3 FLEXpower ONE, Prewired AC and DC boxes with 120VAC Bypass and Type B Outlet, 250ADC breaker, GFDI, 80 amp charge
controller breaker, GVFX3524, MATE2, HUB4, RTS, FLEXmax 80, FLEXnet DC and surge protector for 120V 60Hz applications
FP1-4 FLEXpower ONE, Prewired AC and DC boxes with 120VAC Bypass and Type B Outlet, 175ADC breaker, GFDI, 80 amp charge
controller breaker, GVFX3648, MATE2, HUB4, RTS, FLEXmax 80, FLEXnet DC and surge protector for 120V 60Hz applications
FP1-5 FLEXpower ONE, Prewired AC and DC boxes with 230VAC Bypass and Type F Outlet, 250ADC breaker, GFDI, 80 amp charge
controller breaker, VFX3024E, MATE2, HUB4, RTS, FLEXmax 80, FLEXnet DC and surge protector for 230V 50Hz applications
FP1-6 FLEXpower ONE, Prewired AC and DC boxes with 230VAC Bypass and Type F Outlet, 175ADC breaker, GFDI, 80 amp charge
controller breaker, VFX3048E, MATE2, HUB4, RTS, FLEXmax 80, FLEXnet DC and surge protector for 230V 50Hz applications
Weight Unit 98 lbs (44.5 kgs)
Shipping 109 lbs (49.4 kgs)
Dimensions (H x W x L) Unit 12.88 x 19.69 x 33.44 (32.72 x 50.01 x 84.94 cm)
Shipping 17 x 22.75 x 38 (43.18 x 57.79 x 96.52 cm)
* Individual FLEXpower ONE components carry all necessary ETL Certifications
* Specifications subject to change without notice
Easily Mounts On To Bracket
The FLEXpower ONE system was designed with ease of installation in mind. The hanging
bracket can be quickly installed allowing the entire system to be hung with minimal effort.
** These units ship direct from the manufacturer, as they are pre-wired to order.
