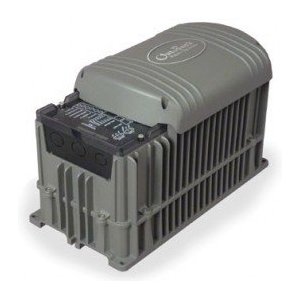

The OutBack true sinewave GFX1548 Inverter/Charger is a competitive power solution designed for applications with lower power demands. Incorporating a DC-to-AC sinewave inverter, battery charger and AC transfer relay housed within a die-cast aluminum chassis, the OutBack GFX1548 inverter/Chargers give you the ability to sell solar, wind or hydro power back to the utility grid while providing instantaneous back-up power in the event of a utility outage.
The OutBack GFX1548 built in transfer relay automatically disconnects your loads from the utility grid and powers them from the inverter in the event of an outage, allowing you to continue using your solar and battery back-up power, unlike traditional grid-tie systems. For areas that frequently experience power instability such as surges, spikes or brownouts, or where standard inverters have trouble syncing to the utility grid, the OutBack GFX1548 grid reconnect timers have been shortened to reduce overall sell-back downtime and improve system functionality.
Outback GFX1548 (sealed) Inverter Specifications:
Continuous Output Power: 1500 VA
Output Voltage: 120 VAC/60 Hz
DC Input Voltage (Nominal): 48 VDC
Peak Efficiency: 93%
AC Input Current Maximum: 60 amps AC
Continuous DC Charge Rate: 20 amps DC
Frequency Range: 54-66 Hz
DC Input Voltage Range: 42.0-68.0 VDC
Warranty: 5 years
Weight: 49.6 lbs
NOTE: OutBack GFX International Series inverters are NOT ETL Listed to UL 1741. NOT intended for use in the U.S. or Canada.
