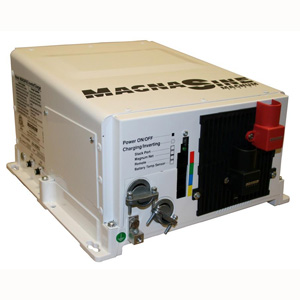

Magnum MS4024PAE 4000 Watt 24V- Parallel Inverter - 105A PFC Charger

Regular Price: $2,699.00
ONLY: Call or email for pricing - 1-866-786-7763 (admin@solarhome.org)
Item Number: MS4024PAE

| More



Inverter Specifications.

  • Input battery voltage range 18.0 - 33.8 VDC.
  • Nominal AC output voltage 120/240 VAC split phase.
  • Output frequency and accuracy 60 Hz 0.04%.
  • Total Harmonic Distortion (THD) < 5%.
  • 1 msec surge current (amps AC) Line-Neutral: 120, Line-Line: 195 Line-Neutral.
  • 100 msec surge current (amps AC) Line-Neutral: 72, Line-Line: 92.
  • 5 sec surge power (real watts) 5800.
  • 30 sec surge power (real watts) 5200.
  • 5 min surge power (real watts) 4800.
  • 30 min surge power (real watts) 4500.
  • Continuous power output at 25° C 4000 VA.
  • Maximum continuous input current 222 A.
  • Inverter efficiency (peak) 93%.
  • Transfer time 16 msecs.
  • Search Mode < 6 watts < 6 watts.
  • No Load (120 VAC output) 27 watts.
  • Waveform Pure Sine Wave.

    Charger Specifications.
  • Continuous output at 25° C 105 ADC.
  • Charger efficiency 85%.
  • Power factor > 0.95.
  • Input current at rated output (AC amps) 15 AAC per leg at 120/240 VAC split phase.

    General Features and Capabilities.
  • Transfer relay capability 2 legs at 30A per leg transfer standard on all models.
  • Five stage charging capability Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver.
  • Battery temperature compensation With available temp sensor (battery temp 0 50° C).
  • Internal cooling 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans.
  • Overcurrent protection Yes, with two overlapping circuits.
  • Overtemperature protection Yes on transformer, MOSFETS, and battery.
  • Conformal coating on PCB's for corrosion protection Yes.
  • Powder coated chassis and top for corrosion protection Yes.
  • Stainless steel fasteners for corrosion protection Yes.

    Physical Specifications.
  • Dimensions (l x w x h) 13.75 x 12.65 x 8.0 (34.9 cm x 32.1 cm x 20.3 cm).
  • Mounting Shelf or wall (no vents on bottom).
  • Max operating altitude 15,000' (4570 m).

    Model: MS4024PAE
