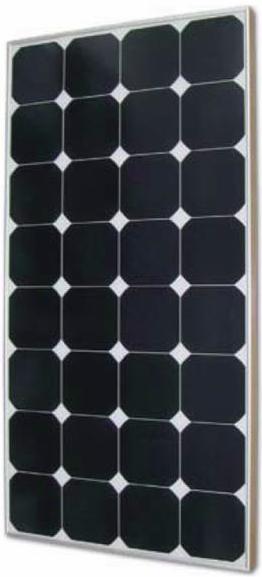

High-Efficiency Battery Charging Module - AE-80HE

The AE series-HE photovoltaic modules provide cost-effective photovoltaic power for DC loads with moderate energyrequirements. They charge batteries efficiently in virtually any climate, These modules are made with back-contact 18-20% efficient monocrystalline cells laminated behind tempered glass with aluminum frames offering the smallestfootprint available for this size module. They have an industrial-grade conduit-ready junction box on theback that had knockouts for two standard 1/2" conduit fittings. Typical commercial applications of these modules include remote telemetry, instrumentation systems, security sensors, signals, and land-based navigation aids. They havea 10-year power output warranty. Made in China.
Features

80 watt peak power

32 cells

Peak power voltages; 17.60 volts

Peak power current; 4.55 amps

Open circuit voltage; 21.4 volts

Short circuit current; 4.89 amps

L x D x W; 40.83 x 20.75 x 1.38 mm
