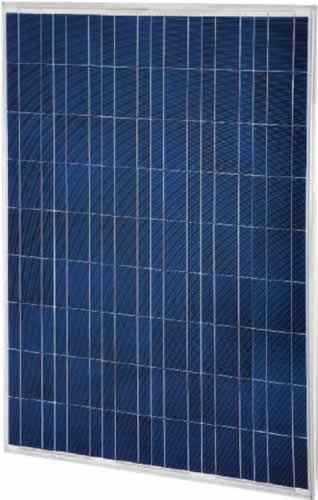

These panels come in pallet quantities of 20. If you would like to order less than a pallet please call our customer service.GE GEPVp-200-M, 200 watt 18 volt nominal solar module
NOTE: GE has changed how this module uses Tyco Connectors. This module does not have cables coming off of it. Instead GE provides one 6' cable per module to make the series connections.
You will need to obtain another cable for every module string in the array. The cable will have a Positive Keyed (Red) Female Tyco connector on one end and a Negative Keyed (Blue) Female Tyco connector on the other.
See the GE Tech Bulletin in the DATA SHEETS tab for more information.
Features
* 54 poly-crystalline cells connected in series
* Peak power of 200 Watts at 26.3 Volts
* Designed for optimum use in residential and commercial grid-tied applications
* 20-year limited warranty on power output, 5-year limited warranty on materials and workmanship*
* Junction box and 1.8 meter cable with easy-click Solarlok (Tyco) Connectors included.
*Refer to GE Energy Product Warranty for specific details.
Benefits
* Output power tolerance of 5%
* Robust, clear anodized aluminum frame with pre-drilled holes for quick installation
Certifications
* UL-1703
* IEC-61215
Physical Design Properties
Weight: 39 lbs. (17.7 kg)
Weigh (Wind) Bearing Potential: 50 lbs/ft2 [125 mph equivalent]
Hailstone Impact Resistance: 1" @ 50 mph (25mm @ 80 kph)
Typical Performance Characteristics
* Peak Power (Wp): 200 Watts
* Maximum Power Voltage (Vmp): 26.3 Volts
* Maximum Power Current (Imp): 7.6 Amps
* Open Circuit Voltage (Voc): 32.9 Volts
* Short Circuit Current (Isc): 8.1 Amps
* Short Circuit Temperature Coefficient: 5.6 mA/C
* Open Circuit Voltage Coefficient: -0.12 V/C
* Maximum Power Temperature Coefficient: -0.5 %/C
* Maximum Series Fuse: 15 Amps
* Max System Voltage 600V
* Normal Operating Cell Temperature (NOCT): 50C
Weight: 39 lbs. (17.7 kg)
Dimensions: 58.5" x 38.6" x 1.4" (1485 x 981 x 35 mm)
