DPW Solar Top-of-Pole Mount - TPM4-H-SERIES

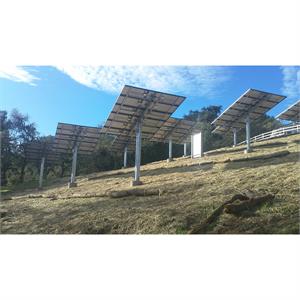

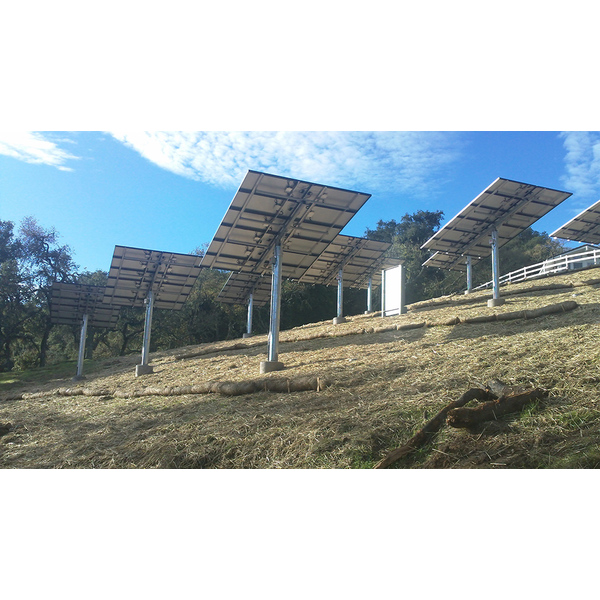

DPW Solar Top-of-Pole Mounts (TPM) G-H Series

DPW POWER-FAB® TPM standard mounts have heavy steel mounting sleeves, elevation pivots, and strongbacks that are coated with durable outdoor paint. The module rails are 6061-T6 mill-finish structural aluminum angles. Stainless steel module mounting hardware is provided. Standard top-of-pole mounts are adjustable from 15° to 65°, in 10° increments, and fit on Schedule 40 or 80 steel pipe.

For harsh environments, upgrades to hot-dip-galvanized steel or anodized aluminum rails are available. Use the tables below to determine the layout and minimum pipe size.

The DPW Online Configurator at dpwsolar.com can be used to generate the specific configuration and bill of materials needed based on module number and type, array location, and environmental conditions (wind, snow, desired tilt, etc.). A DPW Request for Information Form provides the TPM’s foundation specifications including the correct pipe length, schedule, and foundation size requirements, and is available online at www.dpwsolar.com. An Engineering Stamp can be included from DPW through a third -party engineer for additional cost.


Use the Module Series Sizing Chart PDF to determine module series.

NOTE: All pipe recommendations conform to ASCE 7-05, IBC2006, and are based on 90mph, Exposure C, 65-degree max tilt, 12" max front edge ground clearance.
Length80.0  INWidth19.0  INHeight18.0  INWeight150.0  LBSeriesTPM SeriesManufacturer Part NumberTPM4-H-SERIESLong Description- Maximum Strength - Module Specific Design - Ease of Assembly - Reduced Parts - Single Ground Penetration - Seasonal Elevation AdjustmentPole Diameter6Pole Size6"SCH40configuration2H x 2W-PModule SizeH
