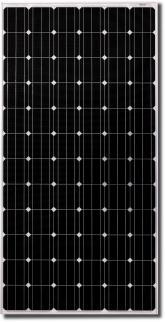

Canadian Solar 290 Watt 36.1 Volt Solar Panel
Monocrystalline
Manufacturer Part Number: CS6X-290M
MaxPower CS6X is a robust solar module with 72 solar cells. These modules can be used for on-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee Canadian Solar's modules meet the highest quality standards possible.
Features
Industry's largest silicon solar module, generating more Watts per panel and reducing BOS cost
Industry first comprehensive warranty insurance by AM Best rated leading insurance companies in the world
Industry leading plus only power tolerance: 0 - +5W
Strong framed module, passing mechanical load test of 5400Pa to withstand heavier snow load
The 1st manufacturer in the PV industry certified for ISO:TS16949 (The automotive quality management system) in module production since 2003
ISO17025 qualified manufacturer owned testing lab, fully complying to IEC, TUV, UL testing standards
Backed by our new 10/25 linear power warranty plus our added 25 year insurance coverage
Applications
Utility
Commercial/industrial roof-tops
Rural area applications
Other on-grid and off-grid applications
Specifications
Model CS6X-280M CS6X-285M CS6X-290M
Nominal Maximum Power (Pmax) 280W 285W 290W
Optimum Operating Voltage (Vmp) 36.0V 36.1V 36.3V
Open Circuit Voltage (Voc) 7.78A 7.89A 8.00A
Open Circuit Voltage (Voc) 44.6V 44.7V 44.7V
Short Circuit Current (Isc) 8.30A 8.40A 8.51A
Module Efficiency 14.59% 14.85% 15.11%
