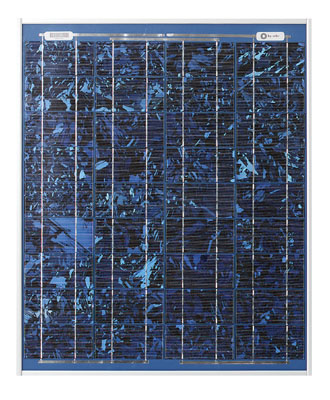

BP 340J Solar Panels (40 Watt)

High-efficiency photovoltaic module using silicon nitride multicrystalline silicon cells.
Performance
Rated power (Pmax) 40W
Nominal voltage 12V
Limited Warranty1 25 years
Configuration
BP 340U Clear universal frame and standard J-box
Electrical Characteristics BP 340
Maximum power (Pmax)3 40W
Voltage at Pmax (Vmp) 17.3V
Current at Pmax (Imp) 2.31A
Warranted minimum Pmax 36W
Short-circuit current (Isc) 2.54A
Open-circuit voltage (Voc) 21.8V
Maximum series fuse rating 20A
Maximum system voltage 600V (U.S. NEC & IEC 61215 rating)
1000V (TÃV Rheinland rating)
