On-grid Module

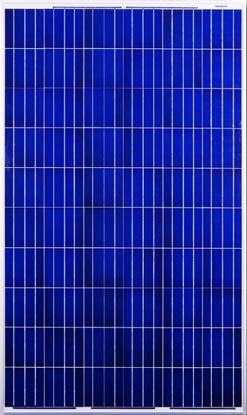

CS6P is a robust solar module with 60 solar
cells. These modules can be used for on-grid
solar applications. Our meticulous design and production techniques ensure a high-yield,
long-term performance for every module
produced. Our rigorous quality control and
in-house testing facilities guarantee Canadian
Solar's modules meet the highest quality standards possible.
Applications
On-grid residential roof-tops
On-grid commercial/industrial roof-tops
Solar power stations
Other on-grid applications
Electrical Data
CS6P-220/225/230/235/240P
Temperature Characteristics
Temperature Coefficient Pmax -0.43%/
Voc -0.34 %/
Isc 0.065 %/
Normal Operating Cell Temperature 45 2
Under Standard Test Conditions (STC) of irradiance of 1000W/m2, spectrum AM 1.5 and cell temperature of 25
Performance at Low Irradiance
Industry leading performance at low irradiation environment, +95.5% module efficiency from an
irradiance of 1000w/m2 to 200w/m2
(AM 1.5, 25 )
Under Normal Operating Cell Temperature, Irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20 , wind speed 1 m/s
Mechanical Data
Cell Type Poly-crystalline 156 x 156mm, 2 or 3 Busbars
Cell Arrangement 60 (6 x 10)
Dimensions 1638 x 982 x 40mm (64.5 x 38.7 x 1.57in)
Weight 20kg (44.1 lbs)
Front Cover 3.2mm Tempered glass
Frame Material Anodized aluminium alloy
J-BOX IP65, 3 diodes
Cable 4mm2(IEC)/12AWG(UL), 1100mm
Connectors MC4 or MC4 Comparable
Standard Packaging (Modules per Pallet) 24pcs
Module Pieces per container (40 ft . Container) 672pcs (40'HQ)
*Specifications included in this datasheet are subject to change without prior notice.
Quality Certificates
IEC 61215, IEC 61730, UL 1703, CEC Listed, CE, KEMCO and MCS
ISO9001: 2008: Standards for quality management systems
ISO/TS16949:2009: The automotive quality management system
