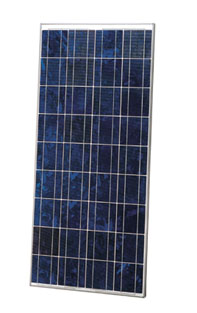

80 Watt Module

Powerful Performance Sharp Reliability

Features
* High-power module (80) using 125mm square multi-crystal silicon solar cells with 12.60%
module conversion efficiency
* Improved cell conversion efficiency: 14.00%
* Water white tempered glass, EVA laminate, plus aluminum frame for extended outdoor use
* Junction box for easy electrical connections in the field
* Nominal 12 VDC output for battery charging applications
* Sharp modules are manufactured in ISO 9001 certified facilities
* 25-year limited warranty on power output

Electrical Characteristics

Cell: Multi-crystal silicon
No. of Cells and Connections: 36 in series
Open Circuit Voltage (Voc):* 21.3V
Maximum Power Voltage (Vpm):* 17.1V
Short Circuit Current (Isc): 5.3A
Maximum Power Current (Ipm): 4.67A
Maximum Power (Pmax):* 80W
Minimum Power (Pmin):* 72W
Encapsulated Solar Cell Efficiency (C): 14.005
Module Efficiency (m): 12.60%
PTC Rating (W):** 70.20
Maximum System Voltage: 600VDC
Series Fuse Rating: 10A
Type of Output Terminal: Junction box
